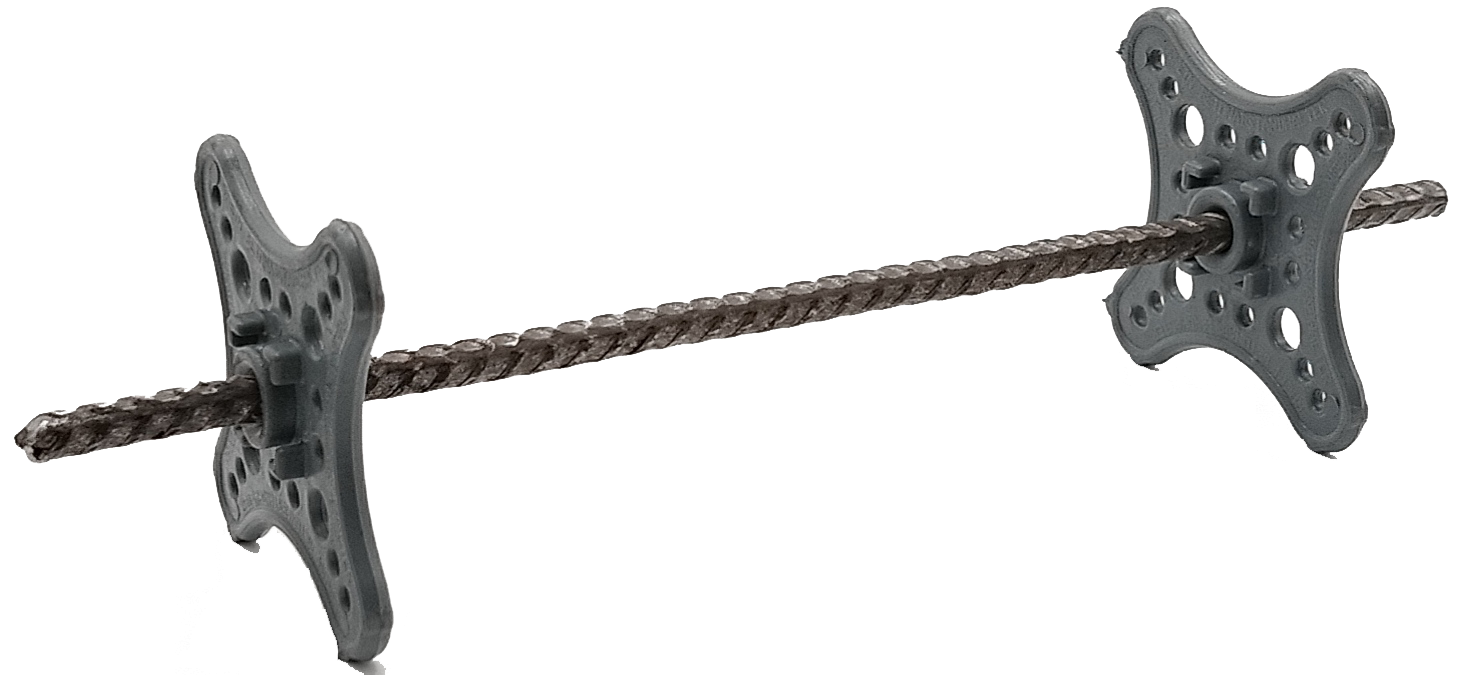

    Reinforcing wire with pushed-on plastic spacers.

    Next generation of rod spacers in which the plastic spacers are firmly connected to the reinforcement wire. Detachment or tilting of the spacers is excluded. Moving to the side is possible with a little effort. Compared to "injection molded" spacers, ours have the advantage that they have very precise distances from one another. On request, we can use certified reinforcing steel in accordance with DIN 488 / 1045-1. The contact surface of the spacers is minimal in order to prevent visible marks on the ceiling.

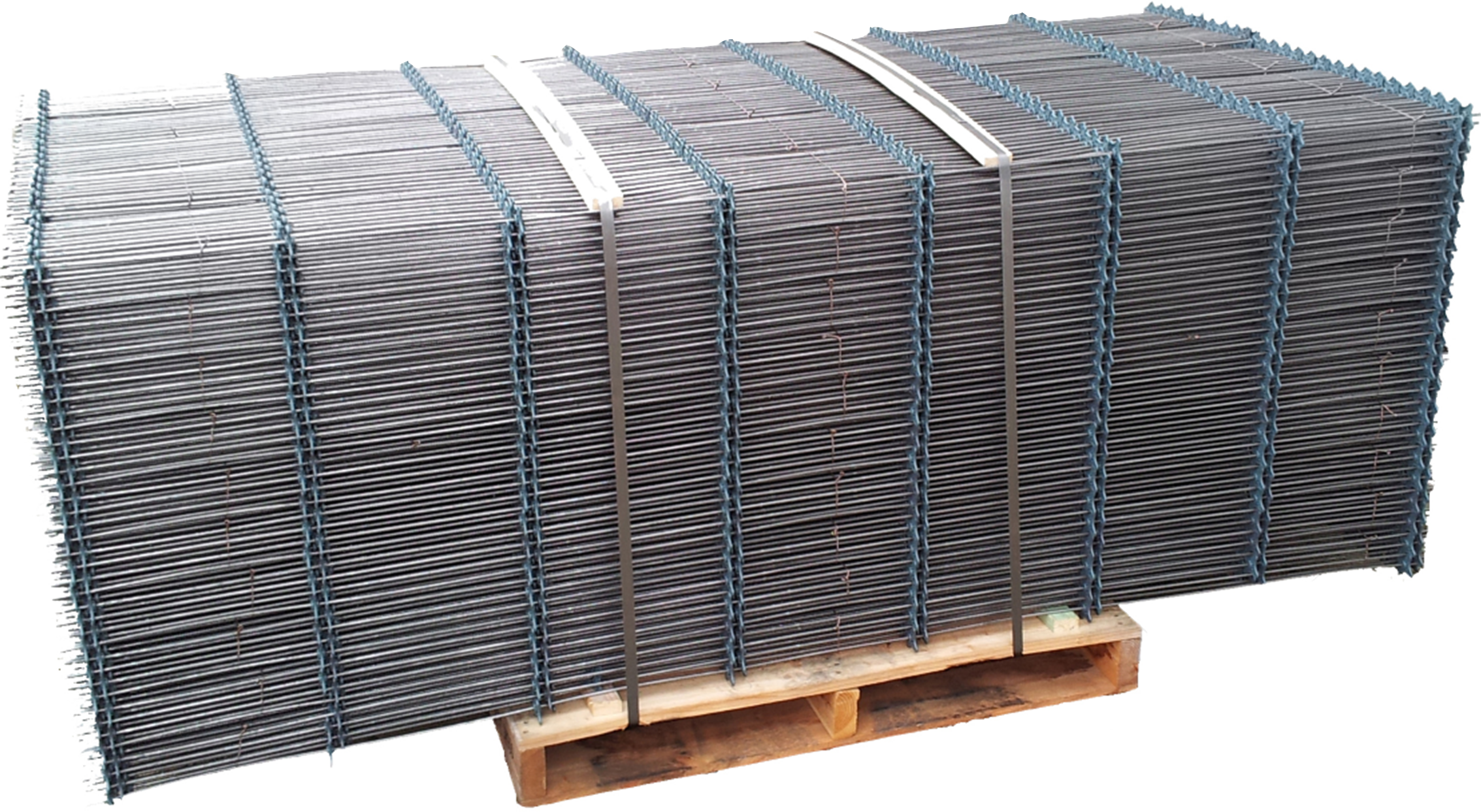

    Delivery is on pallets to the ones below
    specified quantities.

    Rod diameter 5 mm:

    Typ concrete cover support height rods per pallet
    5/15/20 15mm 20mm 3.000
    5/20/25 20mm 25mm 2.000
    5/25/30 25mm 30mm 1.600
    5/30/35 30mm 35mm 1.120
    5/35/40 35mm 40mm 1.120

    Rod diameter 6 mm:

    Typ concrete cover support height rods per pallet
    6/15/21 15mm 21mm 3.000
    6/20/26 20mm 26mm 2.000
    6/25/31 25mm 31mm 1.600
    6/30/36 30mm 36mm 1.120
    6/35/41 35mm 41mm 1.120

    All bar lengths between 0.76 m and 2.96 m can be manufactured with a minimum of 3 and a maximum of 9 spacers. Optionally made of reinforcing steel B500A according to DIN488.
